Why the "Shape" of Heat Sink Fins Determines Cooling Efficiency?

Copper heat sink fins act as "cooling tentacles" for electronic devices and power systems—their surface area, thickness, and arrangement directly determine cooling capacity. In LED fixtures, server enclosures, and EV motors, traditional copper fin manufacturing faces unbreakable bottlenecks:

● Thickness Limits：Stamping or milling can't produce ultra-thin fins below 0.2mm, limiting dense arrangement in small spaces and reducing cooling area by over 30%.

● Structural Rigidity：Only flat or simply curved fins are possible, rather than biologically inspired bifurcations (such as leaf vein patterns) or gradient spacing structures that minimize thermal resistance.

● Poor Adaptability：Traditional straight fins can’t match irregular enclosures (e.g., curved motor housings), and welding gaps between fins and bases add 20% contact resistance.

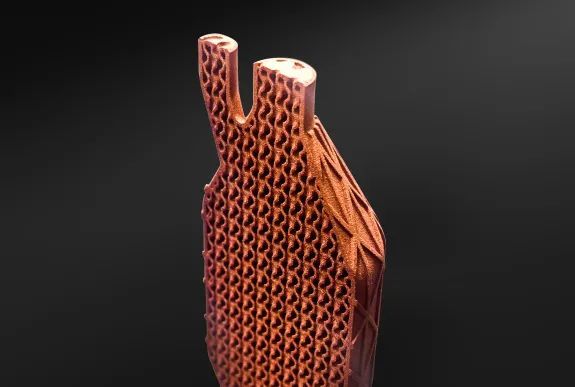

Copper heat sink fin 3D printing is redefining cooling efficiency through "shape freedom."

How Does 3D Printing Unlock the "Morphological Potential" of Copper Fins?

Targeting traditional pain points, 3D-printed copper heat sink fins deliver three breakthrough values:

1.Ultra-Thin, High-Density Design

Selective laser melting enables 0.1mm-thick fins, achieving 80-100 fins per cm2 in the same space (vs. max 50 with traditional methods)—doubling cooling area. This is critical for compact devices like LED headlights and micro-servers.

2.Bio-Inspired Efficient Flow Structures

3D printing imitates honeycomb or leaf vein patterns, creating adjustable fin clusters with branching angles (15 ° -45 °). Combined with base micro-channels, airflow turbulence increases by 40%, boosting heat exchange efficiency by 25% (data from 100W LED cooling tests).

3.Conformal Integrative Molding

Fins and device enclosures/bases are printed as one piece, perfectly fitting curved or irregular structures to eliminate welding gaps. For example, conformal fins on EV motor arc housings improve cooling uniformity by 30%, preventing local overheating.

Xiaojiao's Copper Heat Sink Fin 3D Printing Solutions

Xiaojiao specializes in turning "morphological advantages" into practical cooling performance, with core capabilities:

● Patented Green Laser Technology：515-560nm wavelength achieves 40-60% copper absorption, ensuring 0.1mm fins are deformation-free and pore-free (99.96% density)—avoiding cooling failure from fin damage.

●Full-Scenario Material Options：Pure copper fins (368W/m·K) for room-temperature use (e.g., consumer electronics); CuCrZr alloy fins (300℃+ resistance) for industrial motors and aerospace equipment.

● Fluid Simulation Optimization：CFD simulations identify airflow dead zones, optimizing fin spacing (0.3-1mm adjustable) and tilt angles to ensure 15-30% better cooling than traditional designs.

● Rapid Validation：
